handrail mounting
gewünschte Gesamtlänge (7 cm + Verlängerung): gewünschte Gesamtlänge (7 cm + Verlängerung)

from

35,50 €

incl. 19% VAT , plus

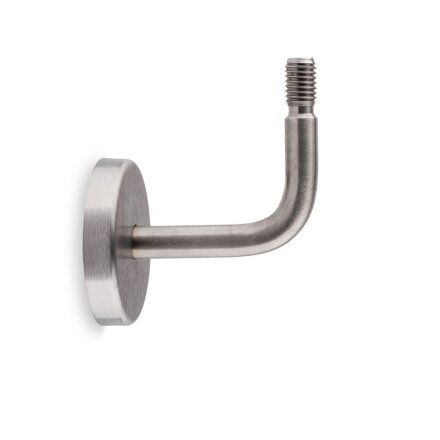

* with 12mm thread and round cover chain
* Design suitable for round and straight support surfaces for hand’s

Holder dimensions:

Assembly:

Fixing: on the wall side with 6 different drilling variants
Cover stainless steel Rossette, is only lightly pressed on (very good)
Drill a blind hole approx. 2.50cm deep with a 10mm wood drill bit
Then cut a thread into the hole with a 12mm metric metal thread tap (size 2 or 3)

The connection is very stable and is also often used in the commercial sector.

Additional services:

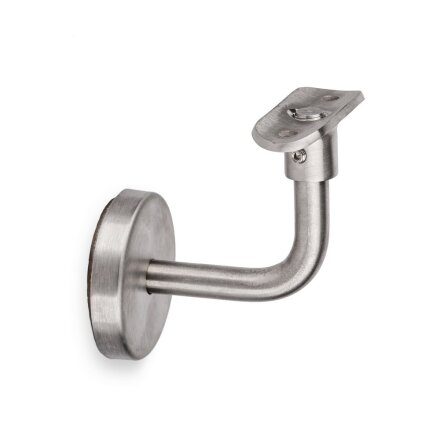

If you would like a support tray like the one shown in picture no. 3 (more pictures), please select above. The support shell is screwed onto the existing thread and fixed with a grub screw.

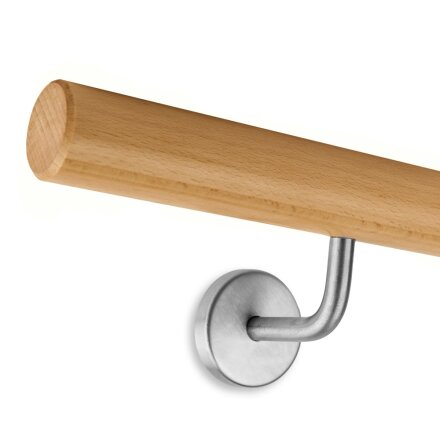

If you would like a handrail purchased from us to have a tapped hole made by us in the handrail for assembly, please select above.

We recommend two holders for a handrail up to approx. 2m, three holders between approx. 2 - 3m and four holders for longer handrails for optimal hold.
