* Design suitable for rounded handrails

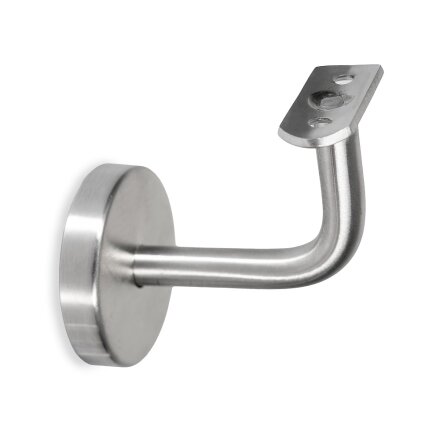

Holder dimensions:

  • Wall distance: approx. 70mm
  • Diameter of blank: approx. 55mm
  • Height of the arc from the middle of the blank: approx. 65mm
  • Cap: Height 10mm - therefore also greener screws can be used
  • The six holes in the blank have a diameter of 8.2mm
  • support tray: 4,7 x 1,9cm


  • Fixing: on the wall side with 6 different drilling variants
  • Cover stainless steel Rossette, is only lightly pressed on (very good)
  • Drill a blind hole approx. 2.50cm deep with a 10mm wood drill bit
  • Then cut a thread into the hole with a 12mm metric metal thread tap (size 2 or 3)

The connection is very stable and is also often used in the commercial sector.

We recommend two holders for a handrail up to approx. 2m, three holders between approx. 2 - 3m and four holders for longer handrails for optimal hold.
