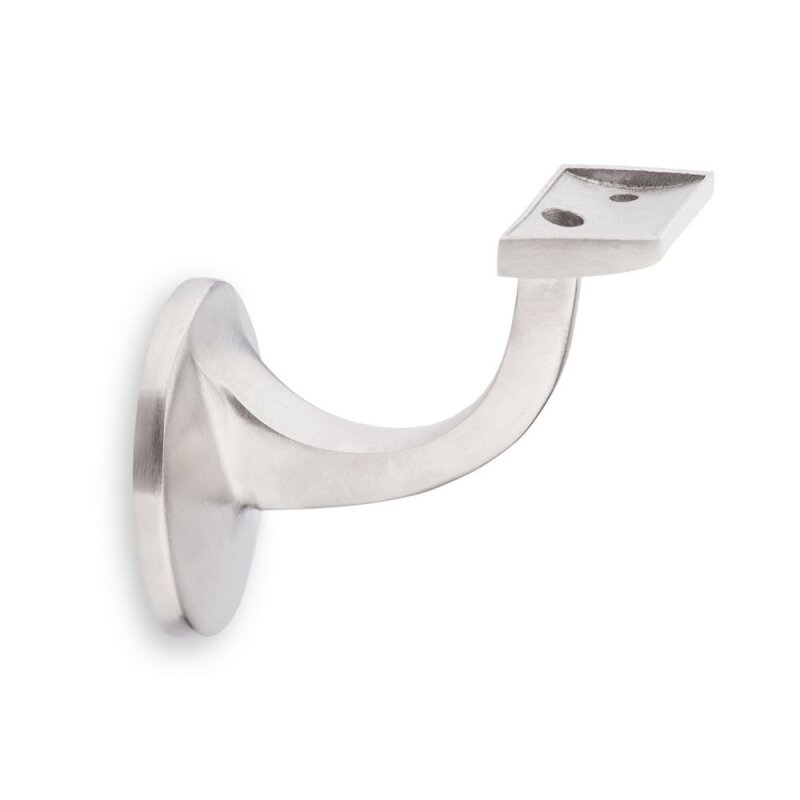

Handrail holder stainless steel - very stable
- Execution for straight handles Omega or plain with straight support surface.
- Straight support
- Hanger bolt
Holder dimensions:
- Wall distance: approx. 65mm

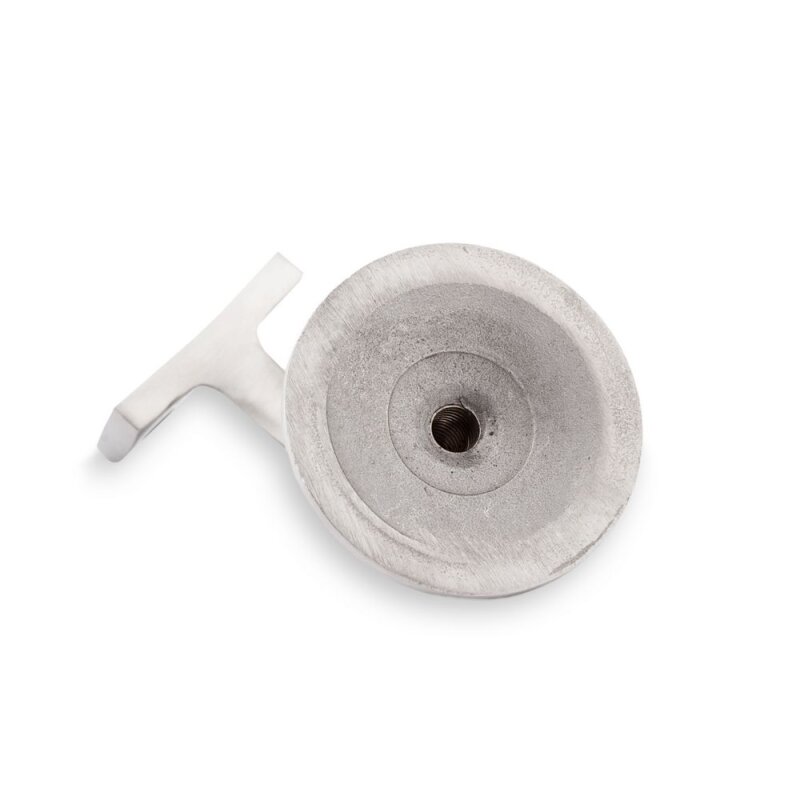

- Ronde - Diameter: 55mm
- Support shell round for the handrail with 2 holes - length approx. 40mm, width approx. 25mm
Assembly:

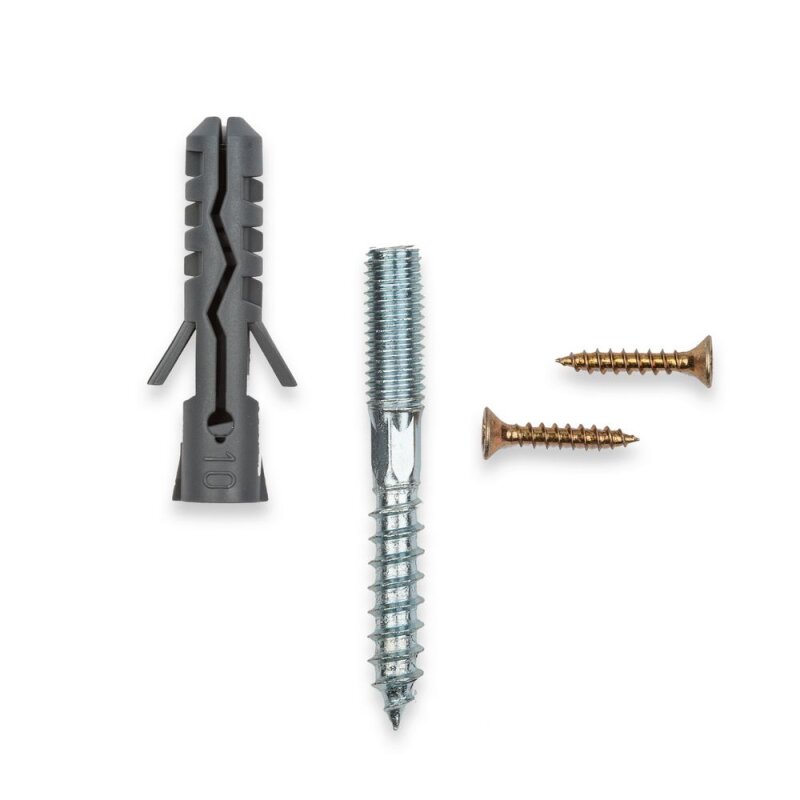

- Attachement - wall side with hanger bolt M8 (60mm) and Dübel (10mm)
- Attachement - handrail side Screws
We recommend two holders for a handrail up to approx. 2m, three holders between approx. 2 - 3m and four holders for longer handrails for optimal hold.
