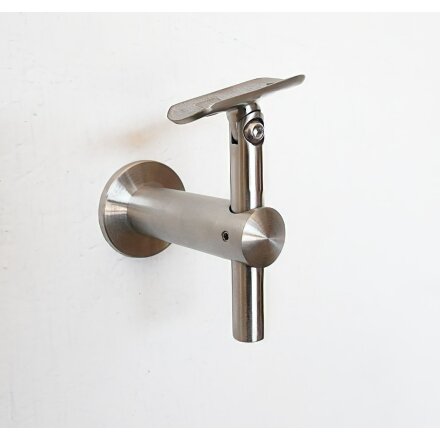

Handrail bracket stainless steel round support - movable
|
Material:
material:
|
stainless steel
|
|
suitable for:
|
- roundes handrails (35 - 55 mm)
- for the following walls:
- brick walls
- wooden walls
- hollow block walls
|
area of application:
|
|
|
Oberfläche:Oberfläche:Oberfläche:
dimensions:
|
- wall distance: 80mm (wall to center of handrail)
- Round Ø: 50mm
- support tray for connection with handrail with 2 holes - Length: approx. 65mm, width: approx. 25mm
- length of pin: 100mm to top of support Shell
|
scope of delivery:
|
- 1x stainless steel handrail bracket
- 2x screws for handrail mounting
- 1x Hanger bolt and dowel for wall mounting
|
assembly:
|
- Fastening - on the wall side with hanger bolt and dowel
- Fastening - screws on the handrail side
- Adjustable support plate with 5mm Allen key
|
other:
|
We recommend:
-up to 200 cm: 2 holders
-between 200 - 300 cm: 3 holders
-between 300 - 400 cm: 4 holders
-between 400 - 500 cm: 5 holders
If you need to pull yourself up the handrail for health reasons, we always recommend one more handrail holder.
more handrail brackets.
The brackets should be fitted between 15 and 25 cm from the handrails. All other brackets are supplied.
|
